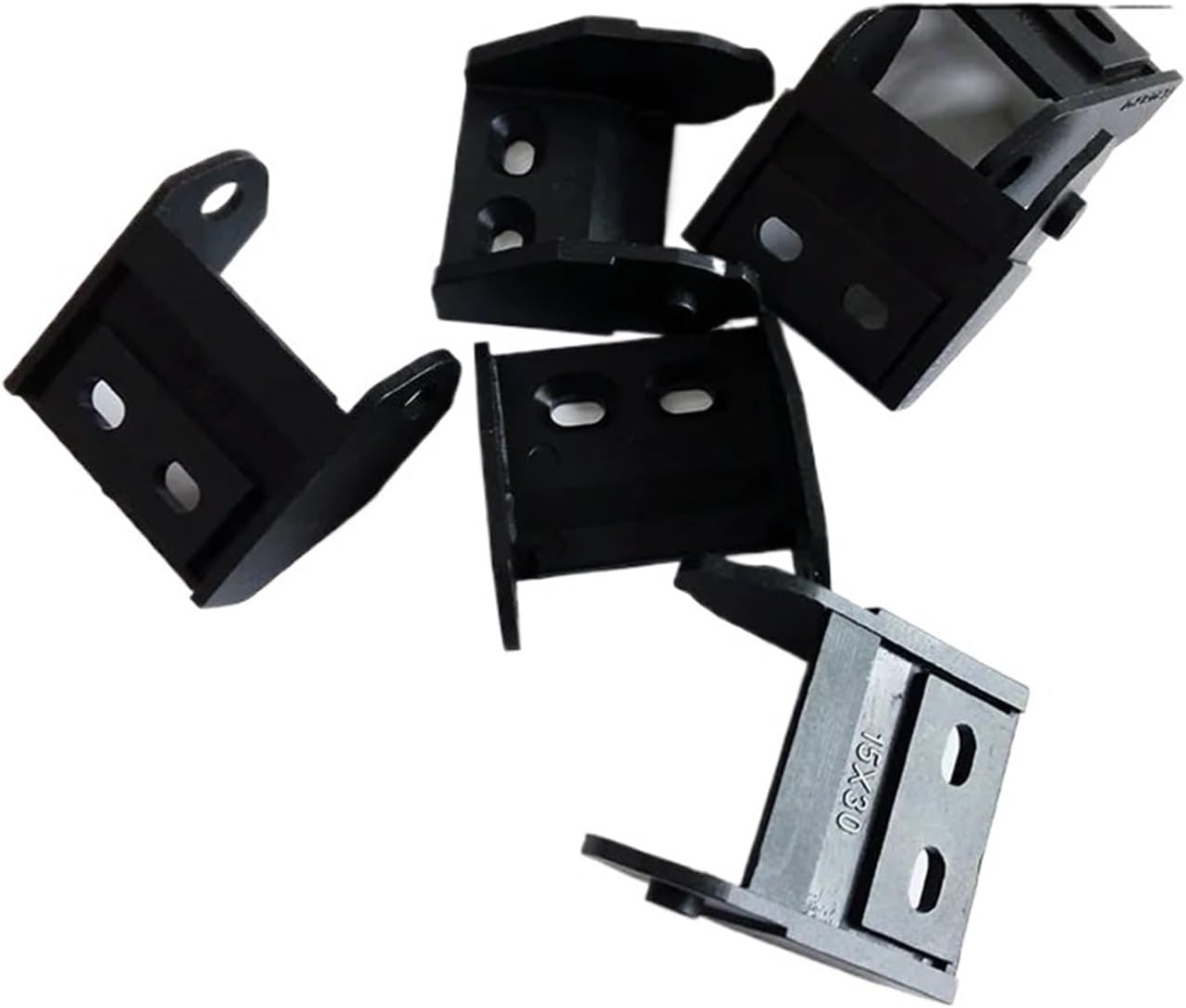

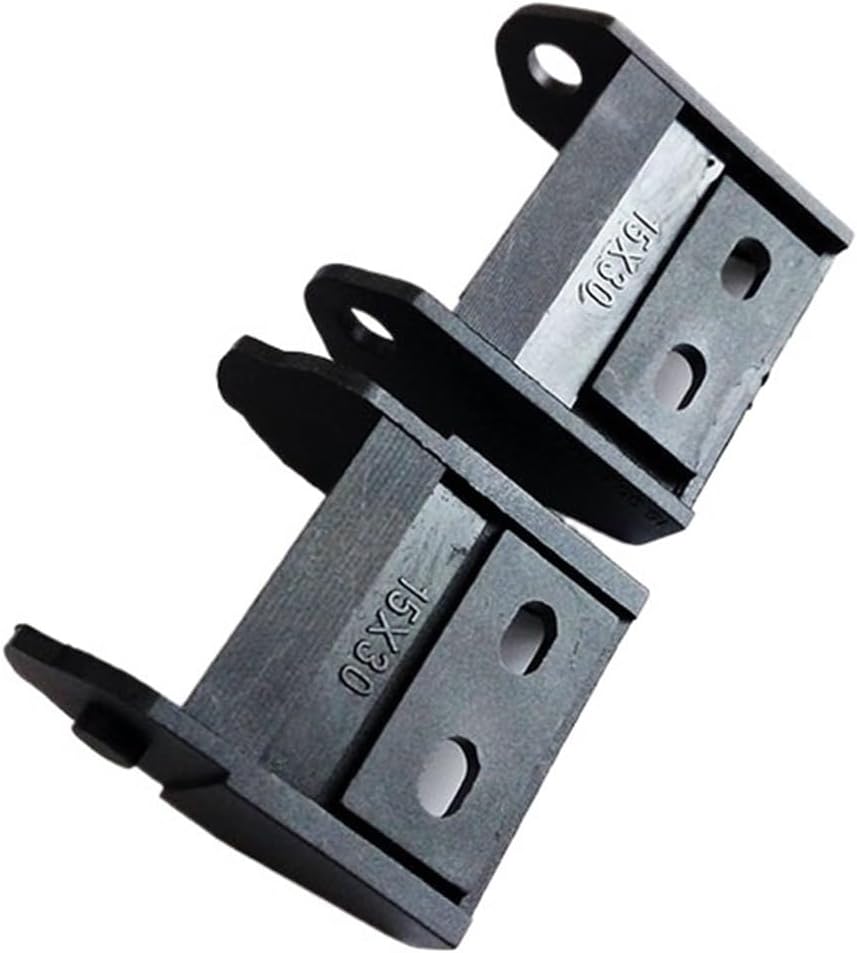

Transmission Chain of Power One Pair 15x30mm Drag Chain End Joints Connectors Plastic Towline Fitting Wire Carrier Cable Drag Chain Transmission Chain of Power

15x30 Bridge non opening Connector towline Plastic Cable drag chain fitting Wire Carrier jointsTowline selection of main parameters:Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap byoverlapping the actual height as the reference height.Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as thetowline wide reference, and stay at least 10% of the width of the space.Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.Use towline length = R + 0.5R + stroke / 2After bending towline total height = 2R + external highTowline place principles: Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in theradial direction of the towline does not produce tension. Larger diameter difference between thewire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended touse separators.==========Hign-concerned Chemical : noneItem Type : Hardware Parts/Machine PartsType for : 15x30mmMaterial : Nylon PA66Connector Pitch : 14mminside height : 15mminside width : 30mmConnector Type : Type BProducts Status : Stock

• Type for : 15x30mm
• Material : Nylon PA66
• Connector Pitch : 14mm
• inside height : 15mm
• inside width : 30mm
