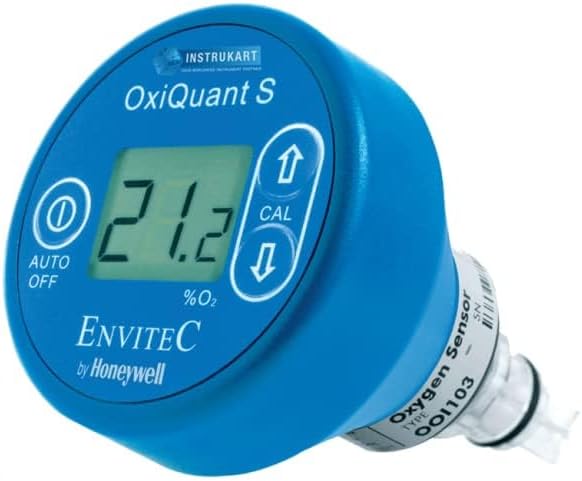

Digital OxiQuant S Portable Oxygen Analyser (0 to 100% Vol) for Pharmaceutical | High Accuracy Oxygen Analyzer | Portable Oxygen Purity Tester | Oxygen Quality Tester | Model: OxiQuant Sgas Monitoring

OxiQuant S Portable Oxygen Analyser is used to determine oxygen concentrations(0-100% o2) in gas mixtures, delivered by oxygen concentrators, blenders, etc. OxiQuant S is compact, lightweight, easy to handle, and calibrating makes the device particularly suitable for mobile applications. Features of OxiQuant S Portable Oxygen Analyser: Flexible manual calibration Auto-off (after 3 minutes) Response time: <13 seconds to 90% of value Sensor (with integrated battery) can be replaced

• Measuring Range: Oxygen: 0 - 100% O2 | Display resolution: 0.1% oxygen; Precision: < 1% volume O2, when calibrated at 100% vol.O2 | Offset:< 1% volume O2 in 100% N2 | Response time: < 13 seconds to 90% of final value
• Linearity error: < 3% relative | Drift: < 1% volume O2 over 8 hours | Effect of humidity: < 1% O2 between 0 and 100% RH at 25°C | Effect of pressureProportional to the change in oxygen partial pressure | Operational pressure range: 750 - 1250 hPa
• Sensitivity to impact:< 1% relative after falling from a height of 1m | Operating temperature;: 0°C – 50°C | Temperature compensation: Integrated NTC compensation | Operating humidity:0 – 99% RH
• Storage temperature: -20°C – 50°C | Sensor life: >500,000 % oxygen hours | Battery service life: approximately 1100 operating hours (battery integrated in sensor)
• Supply Scope: 1 Unit of Oxygen Analyzer, Instruction Analyzer | Applications: Pharmaceutical and food packaging, storage, and purge gas monitoring.
