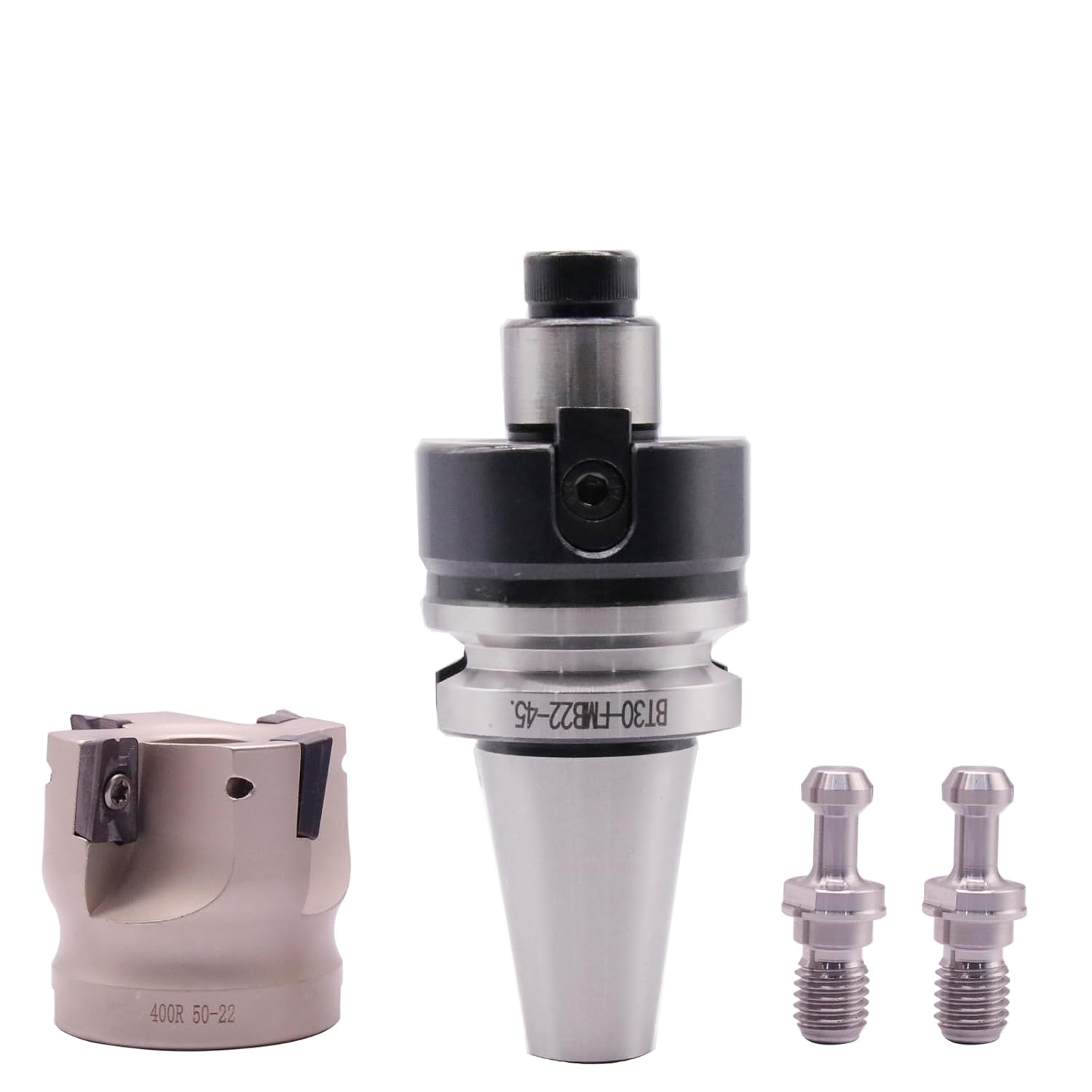

BT30-FMB22-45 Shank Face End Mill Arbor and 400R 50MM CNC End Milling Shell Cutter with 10Pcs Black APMT1604 Carbide Inserts, 2pcs BT30-45° Pull Studs and T15 Wrench

Specification:Use for shoulder milling, face milling and slottingMaterial: High Quality SteelCarbide InsertMaterial: cemented carbideModel: APMT1604Face Mill ArborModel: BT30-FMB22-45Holder End Thread: M12Milling CutterModel: 400R-50-22-4TPull StudMachine Taper: BT30 non hole thruThread: M12Angle Degree: 45 degreesFeatures:400R 90° indexable milling cutter, matching with standard APMT1604 insertMade of alloy steel with high hardness and strength to ensure long service lifeFine durability, long service lifeHigh vibration-absorbing performance, improve the surface finish of the workpieceMade of tool steel hardened has high strength and hardnessSet including BT30-FMB22-45 face mill arbor with 22mm bore for holding milling cutterSet including 10pcs APMT1604 inserts, great for shoulder milling, face milling and slotting and 2pcs BT30-45° Pull StudPackage included:1 x BT30-FMB22-45 Face Mill Arbor1 x 400R 50-22-4T Face Cutter2 x BT30-45° Pull Stud1 x T15 Wrench10 x APMT1604 Carbide Inserts as pictured

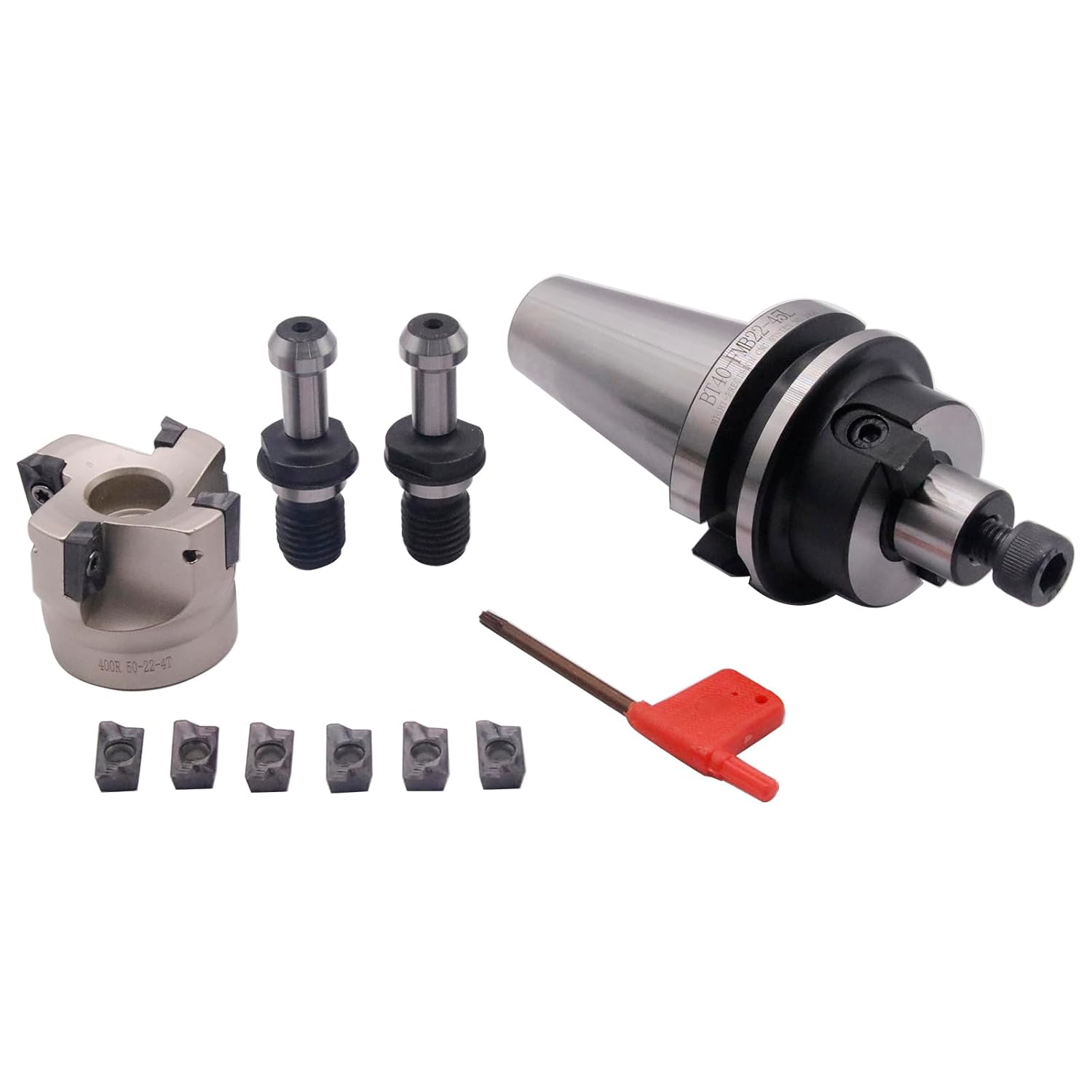

• Set includes: 1 x BT30-FMB22-45 Arbor, 1 x 400R-50-22-4T Cutter, 1 x T15 Wrench, 10 x APMT1604 Carbide Inserts as pictured.

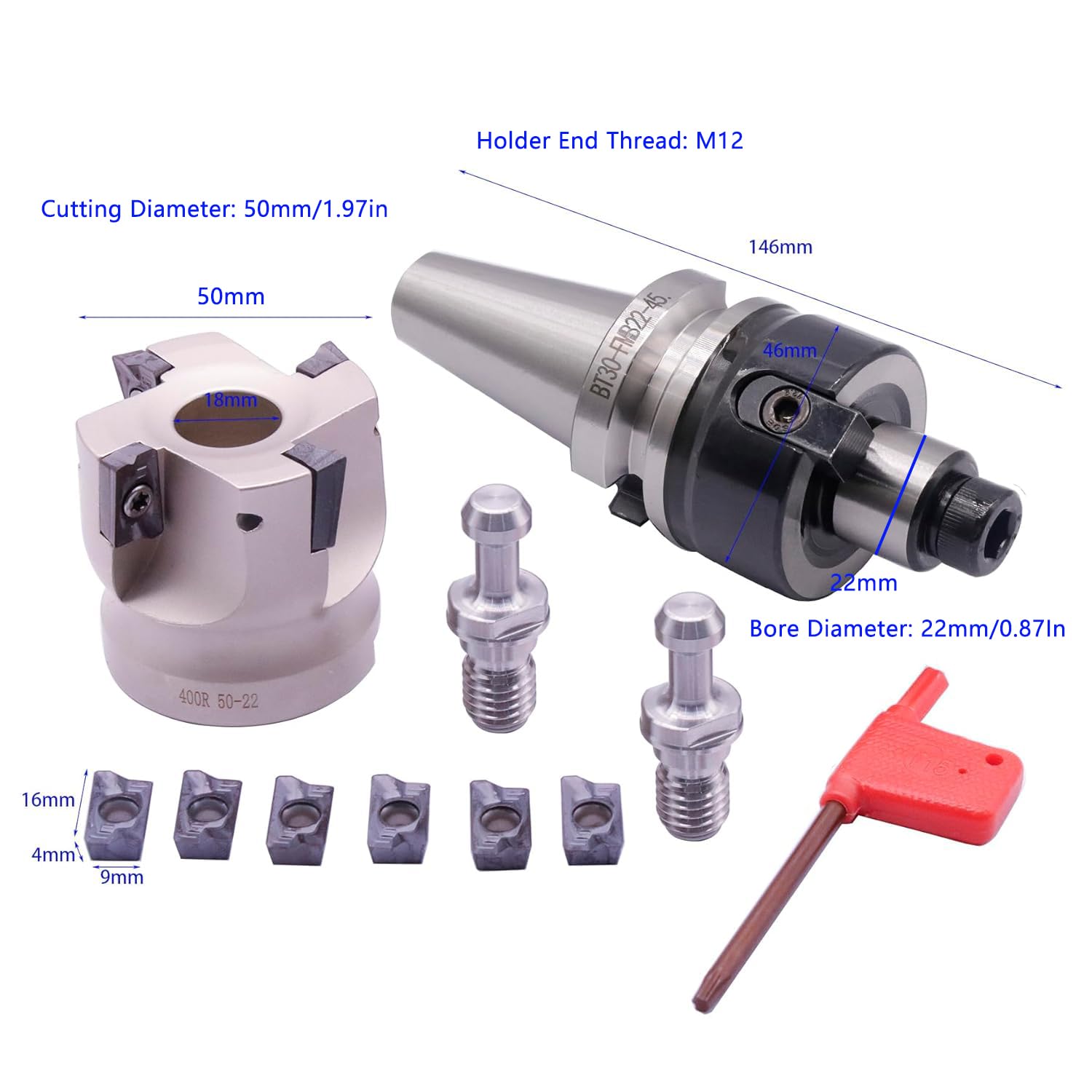

• BT30-FMB22-45 Arbor: Holder End Thread: M12, Bore Diameter: 22mm/0.87In.
• 400R-50-22-4T Face End Mill Cutter: 50mm/1.97in Cutting Diameter, 4 Flutes, 22mm/0.87In Bore Diameter.
• APMT1604 Carbide Insert: 85°Nose Angle Parallelogram, 11°Relief Angle.
• Function: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
